Glass Fused To Steel Bolted Water Storage Tanks

Glass Fused To Steel Bolted Water Storage Tanks

Glass fused to steel (GFS) tanks are a type of bolted storage tank made from two materials: glass and steel. High strength TRS (titanium rich steel) plates and enamels are perfectly fused at high temperatures to form a highly inert inorganic glaze layer. This coating system has excellent anti-corrosion properties and is the best choice for tank and silo.


YHR Tanks, as an experienced glass-fused-to-steel tank manufacturer, has consistently concentrated on the research and production of glass-fused bolted steel tanks since the mid-1990s. After over two decades of continuous dedication, our glass-fused-to-steel tanks have found extensive applications in domestic municipal, environmental protection, aquaculture, and various other fields. Additionally, they have been exported to international markets.

Types of Glass Fused To Steel Bolted Tanks

GFS-1500V Glass Fused To Steel Tanks

GFS-1500V Glass Fused to Steel Tanks area high-quality, corrosion-resistant coating system for tanks and silos. It combines the strength of steel with the durability of glass, providing excellent protection against chemical and environmental factors. It is ideal for various applications, including seawater, liquid leachates and chemical industrial effluent etc.
Read More

GFS-900V Glass Fused To Steel Tanks

GFS-900V Glass Fused To Steel Tanks are an economical option for those looking for a durable and corrosion-resistant storage tank. They are made of high-quality steel plates coated with a layer of glass enamel and are suitable for storing water, wastewater, and other liquids.
Read More

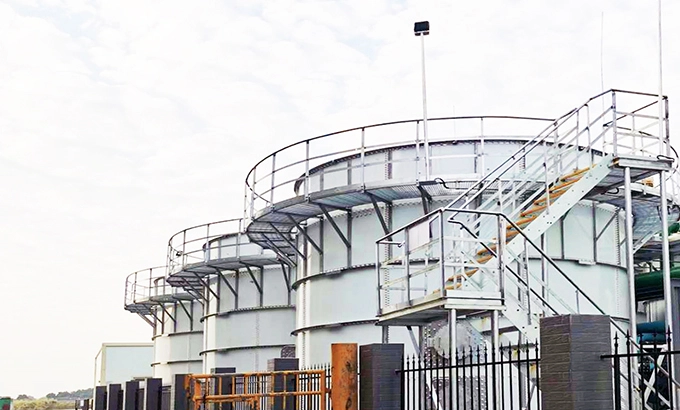

Uses of Glass Fused To Steel Tanks

Uses of Glass Fused To Steel Tanks

Glass Fused To Steel Tanks find extensive applications across various industries, serving diverse purposes in different settings. These tanks are notably utilized in:

  • Water Treatment Plants

  • Wastewater Treatment Plants

  • Biogas Plants

  • Agriculture

  • Food Processing Plants, and more.

Renowned for their extended service life and minimal maintenance requirements owing to corrosion resistance and UV stability, glass-fused tanks cater to municipal, industrial, and agricultural needs.

Their exceptional corrosion resistance, durability, and easy maintenance features make them highly suitable for the storage and processing of a wide range of liquids, chemicals, and gases.  Additionally, these glass fused bolted steel tanks are employed for rainwater harvesting, firefighting, and the storage of various industrial liquids.

YHR

Material Characteristics of Glass-Fused-to-Steel Tanks

Material Characteristics of Glass-Fused-to-Steel Tanks

The steel substrate employed in the construction of glass-fused-to-steel tanks is a specialized high-strength enamel steel, distinctively designed for superior performance. Its mechanical properties, including yield strength, tensile strength, and elongation, far surpass those of conventional steel plates.


Features: Low Carbon, High Strength, High Titanium.

YHR

FEATURES OF GLASS FUSED TO STEEL TANKS

FEATURES OF GLASS FUSED TO STEEL TANKS
  • Fast Installation and Short Construction Period

  • Excellent Anti-Corrosion Performance

  • Low Construction Site Requirements

  • Strong Temperature Adaptability

  • Factory Production, High Systematization & Rigorous Quality Control

  • Versatility in Applications, Seamless Integration to Form Assembled Reactors

  • Visually Appealing Appearance

  • Flexibility Of Relocation, Expansion, And Recycling

  • Low and Simple Maintenance & A Lifespan Exceeding 30 Years


YHR

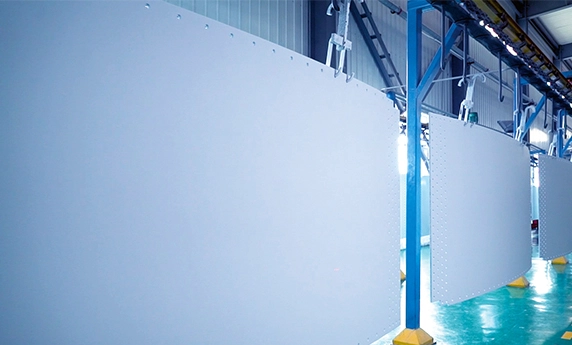

Glass Fused To Steel Bolted Tanks Manufacturing Process

Glass Fused To Steel Bolted Tanks Manufacturing Process
  • Glass-Fused-To-Steel Tank adopts high strength glass fused special steel as the base material, and uses the honing technology at high temperature of 800 degrees Celsius to fuse the anti-corrosion glaze layer with high inertia onto the surface of the base material to make standardized steel plate module.


  • Compared with other tanks (Carbon Steel Welded Tank/Reinforced Concrete Tank), Glass-Fused-To-Steel Tank realizes breakthrough innovation in materials, anti-corrosion technology and installation mode, and is an advanced tank manufacturing technology.

YHR

OUR GLASS FUSED TO STEEL TANKS PRODUCTION PROCESS

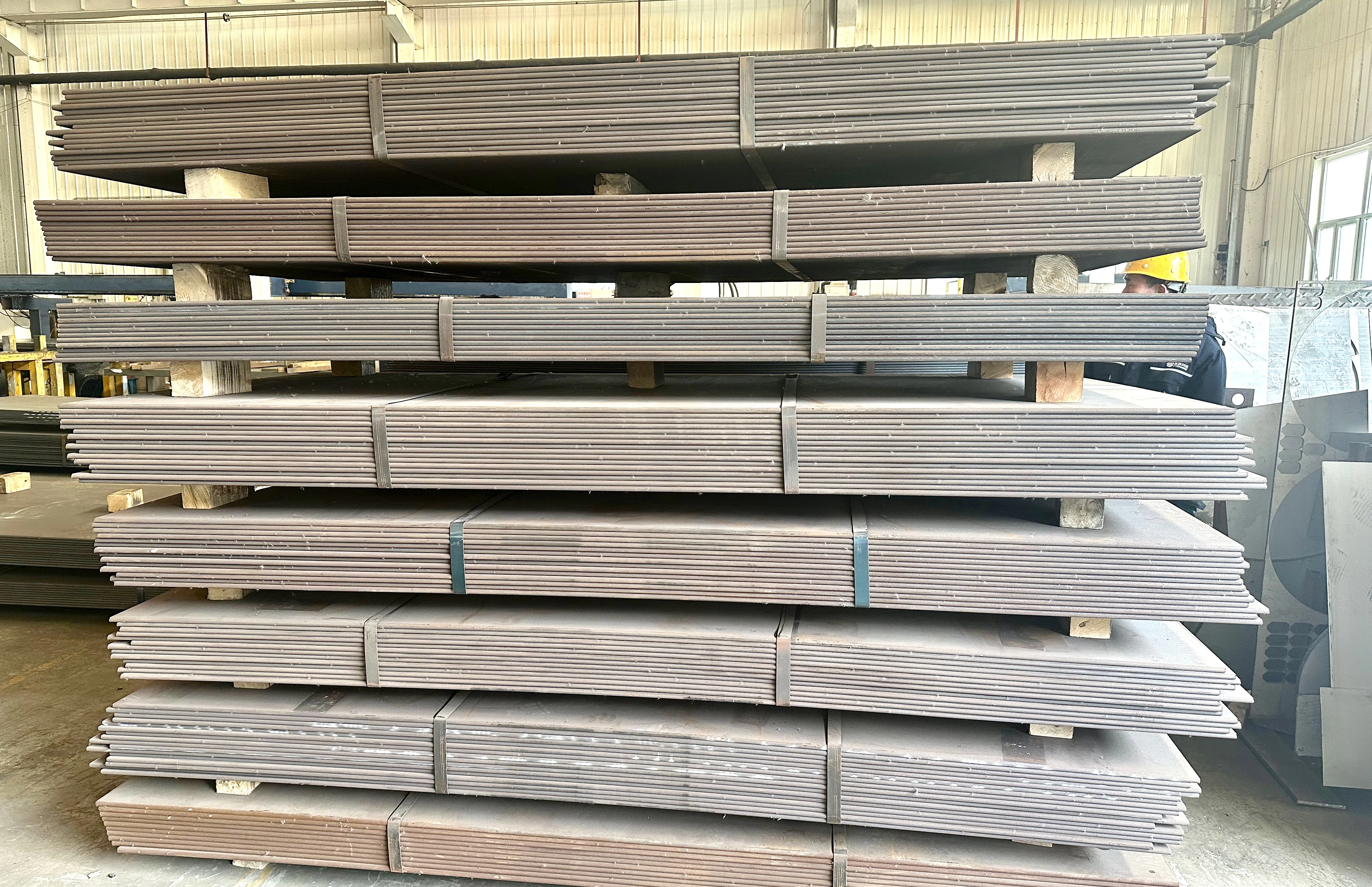

1. Raw Material Preparation

  • High-strength TRS (titanium-rich steel) plates specially produced for the Glass-Fused-To-Steel Technology.

  • Rigorous preparation of machinery ensures optimal functionality.

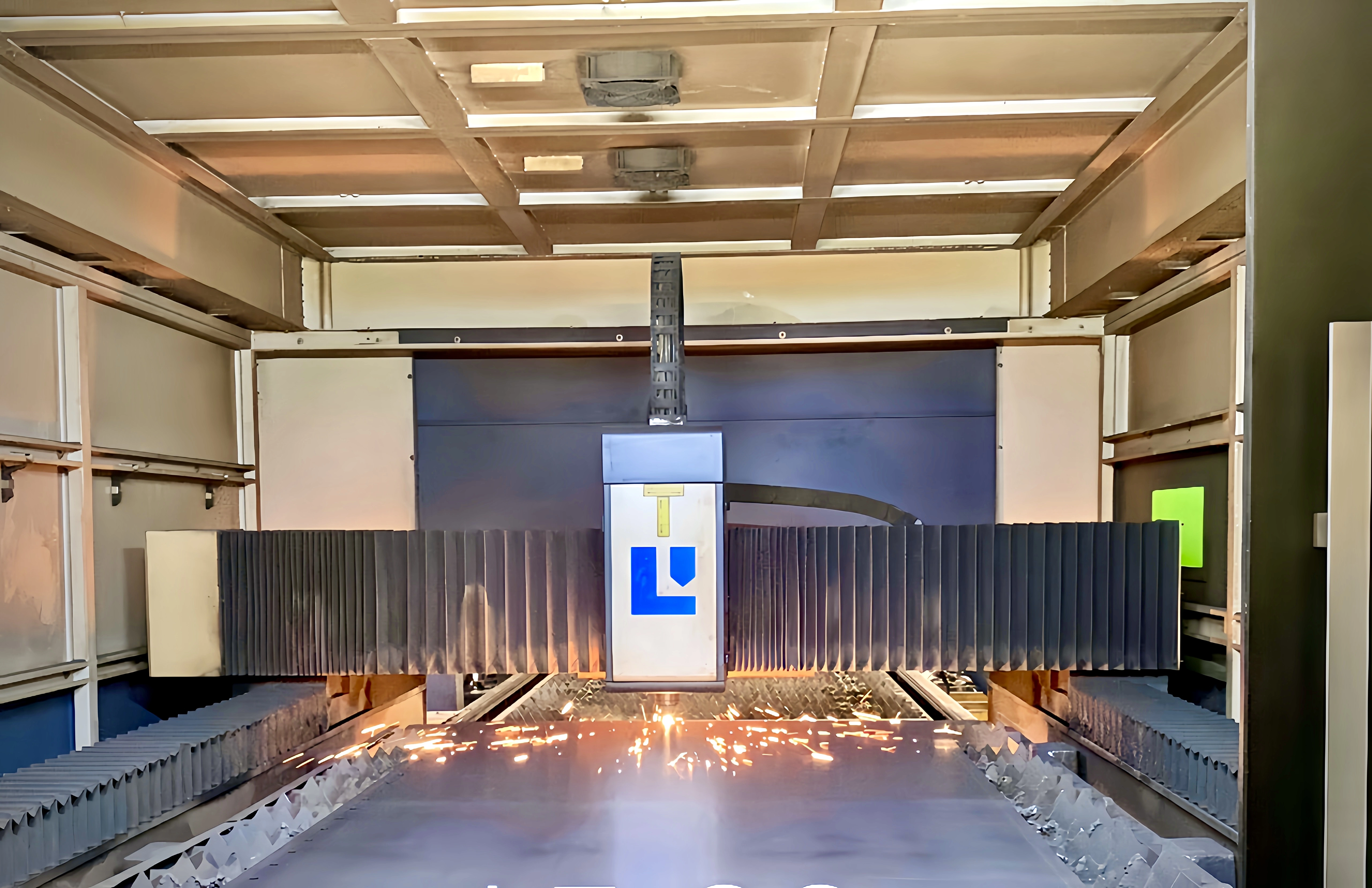

2. Laser Cutting

  • Utilizing laser cutting technology to meticulously cut steel plates with precision.

  • Bolt holes and nozzle apertures are precision-cut with automated lasers for accurate and efficient production.

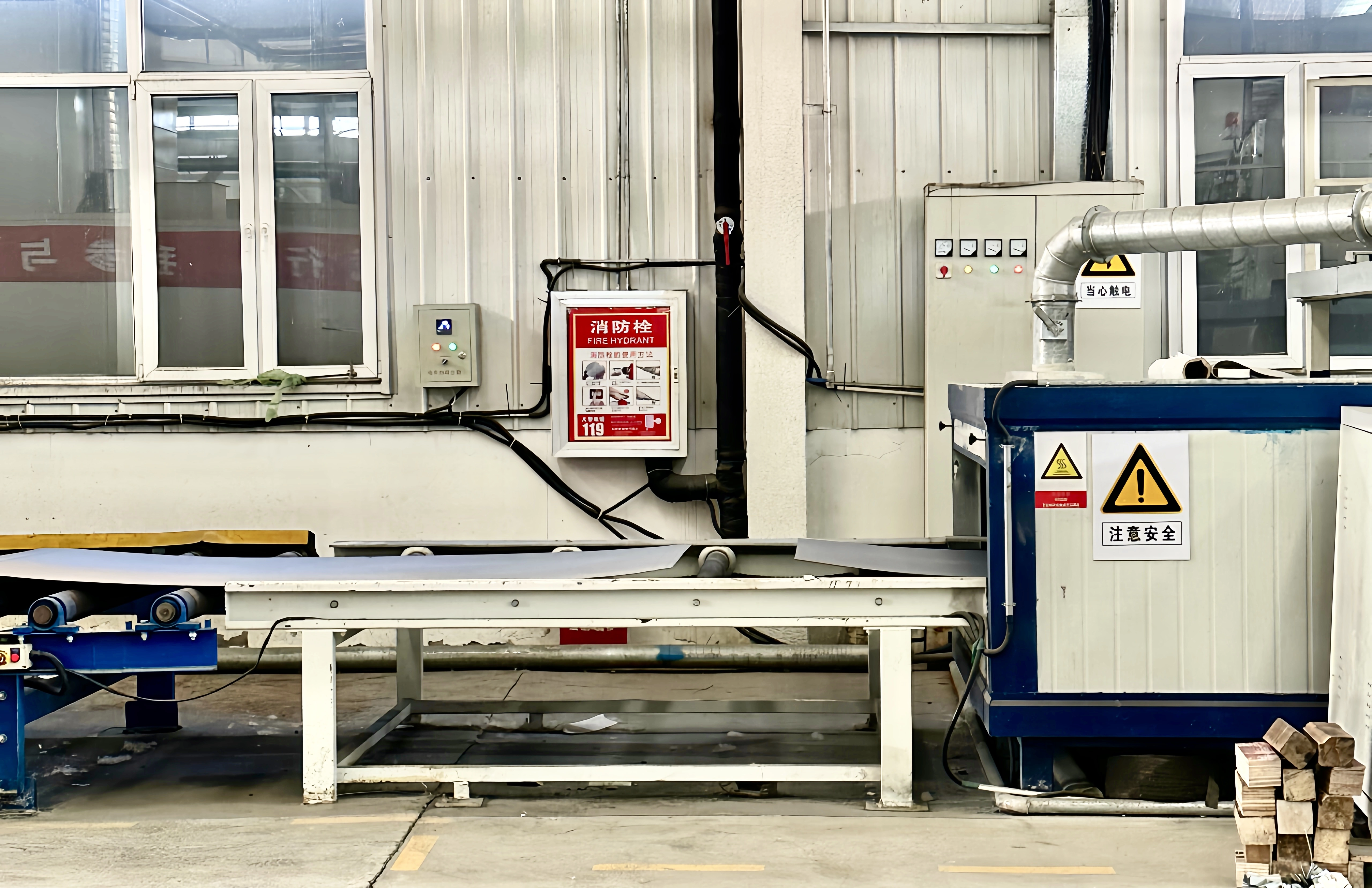

3. Shot Blasting

  • Surface cleaning involves removing dust particles.

  • All plates shall be shot blasted to SSPC SP-10/NACE2 (Near White Metal) to remove the surface oxide layer and oil pollution.

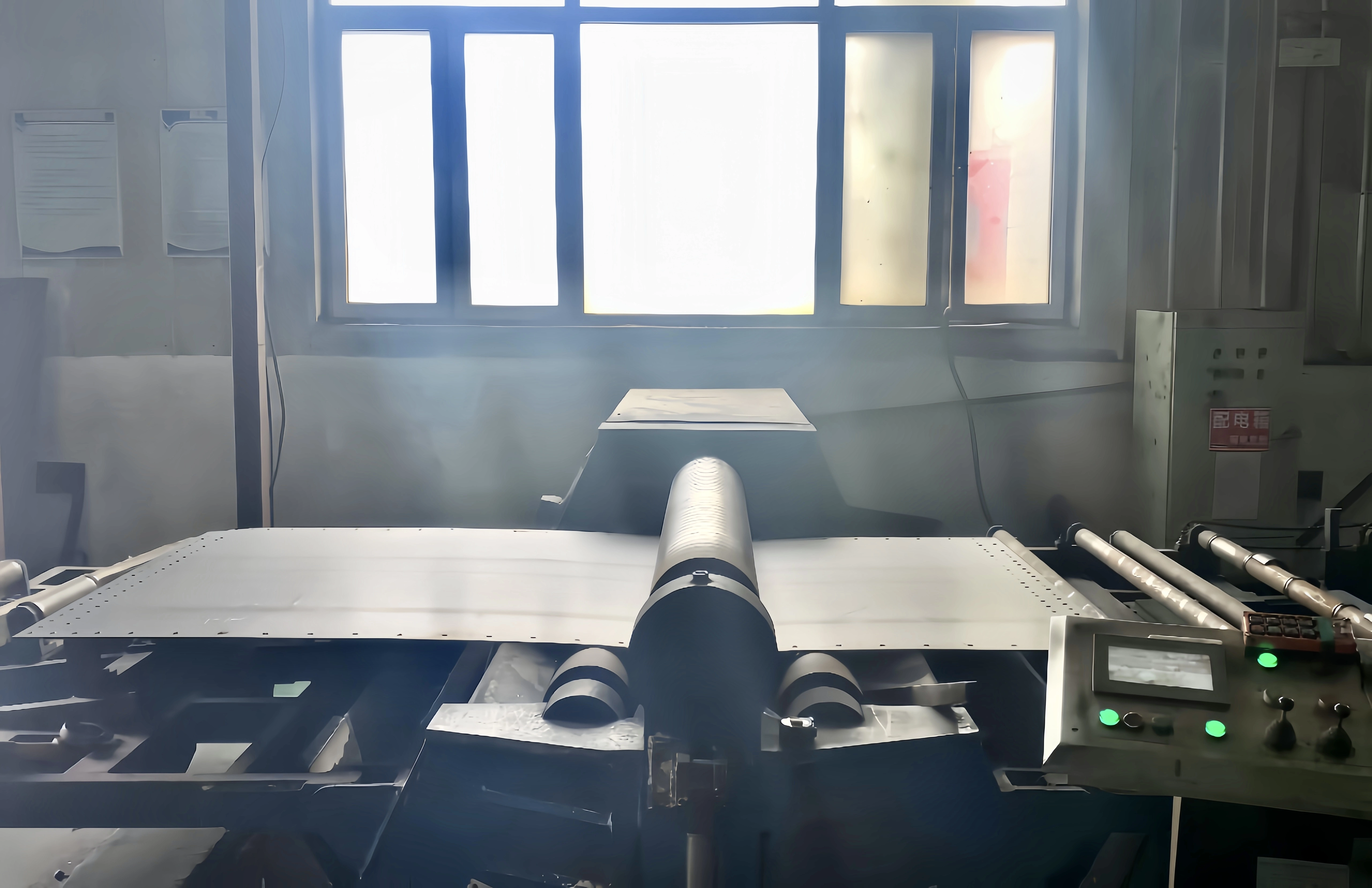

4. Bending

  • Rolling plates are bent according to the tank diameter.

  • Sampling inspection ensures compliance with the tank curvature.

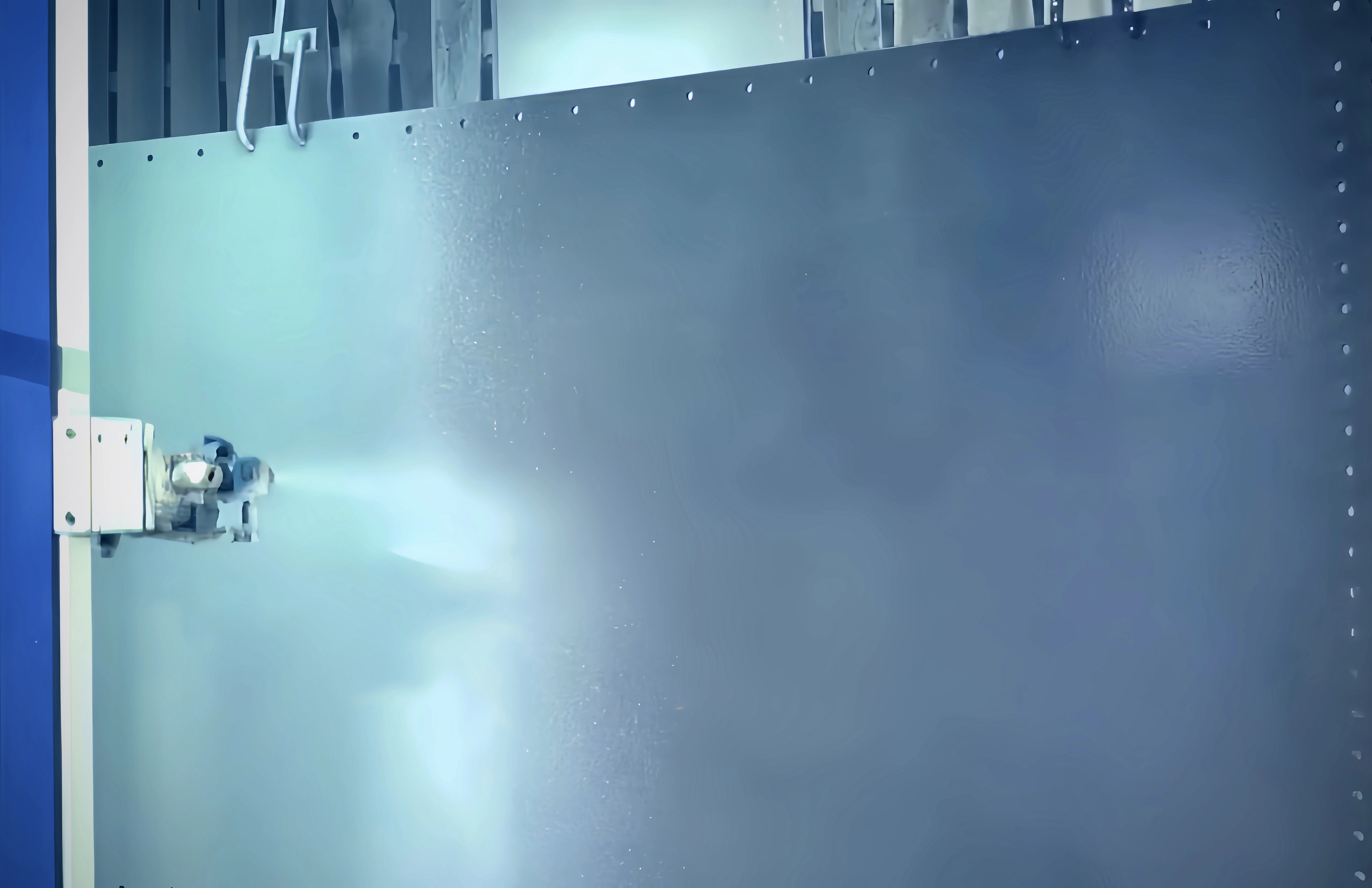

5. Glass Coating

  • Panels are coated with distinct glazes for varied storage mediums.

  • Advanced automatic spraying coating technology as per AWWAD103 standard.

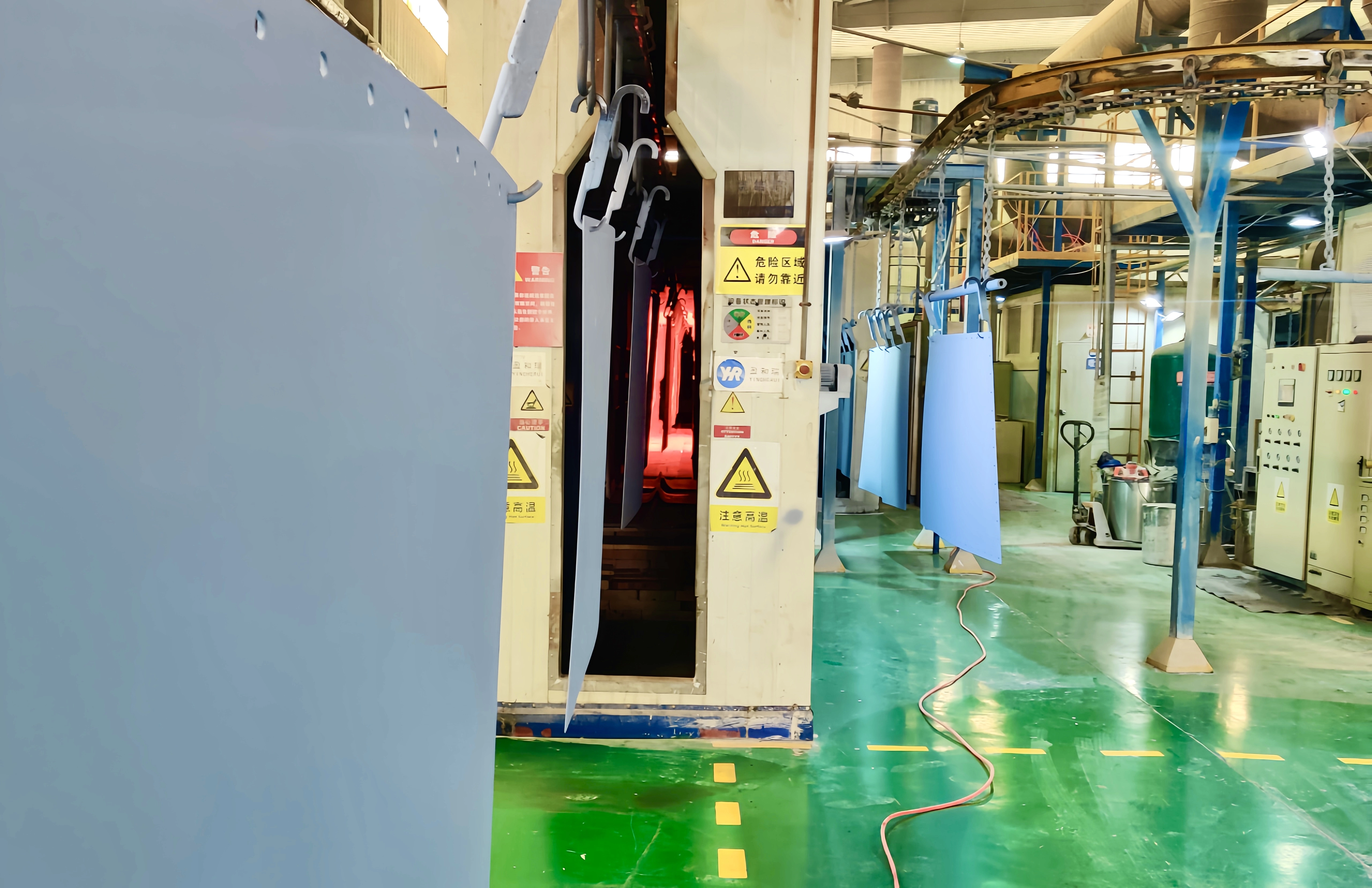

6. Firing

  • GLASS FUSED TO STEEL - The glass coating is fused to the steel through firing.

  • Firing in an automatic tunnel oven at 800℃ to make glass and steel combined absolutely.

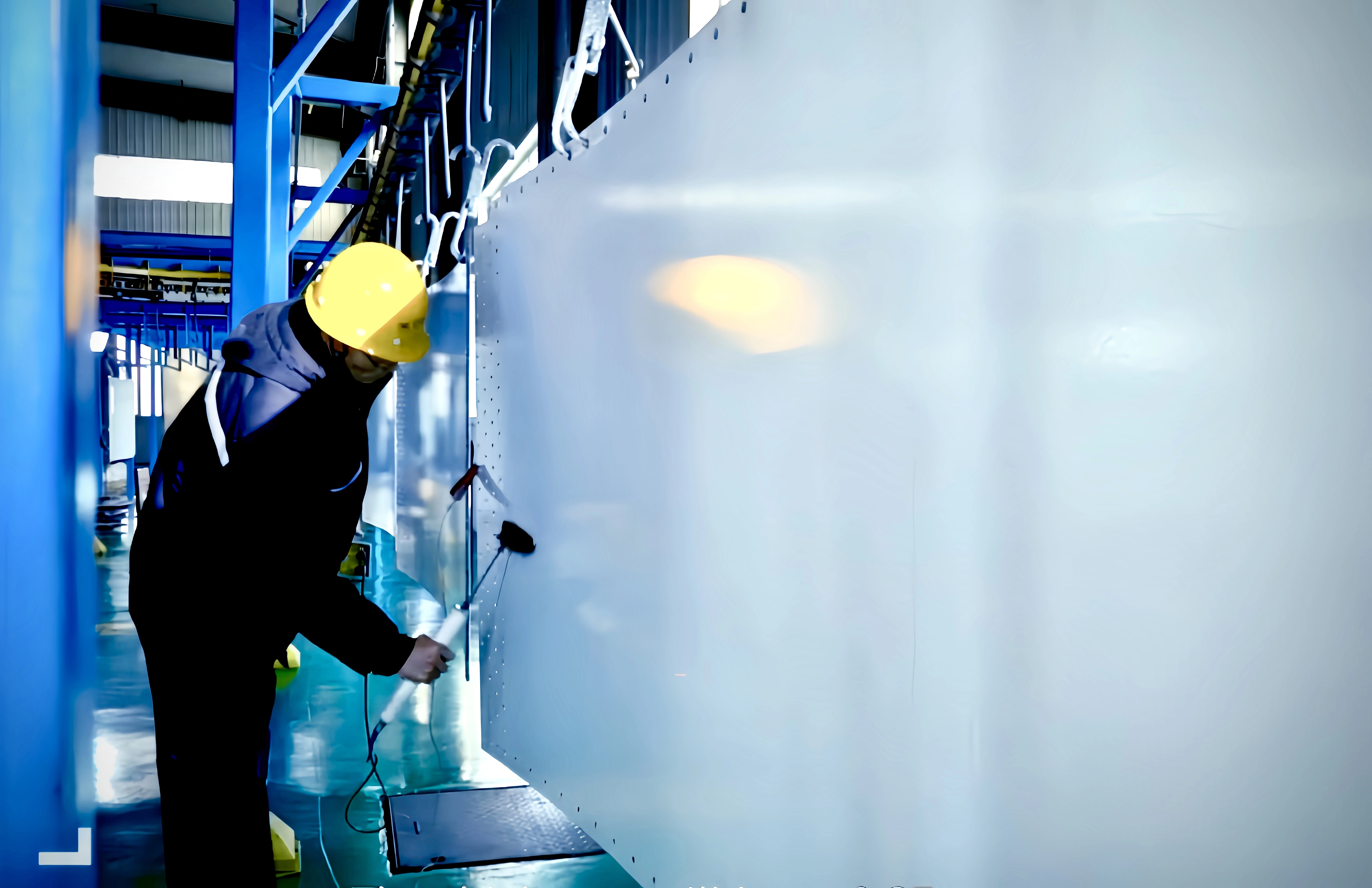

7. Inspection

  • Adopt the industry's high-standard quality control system, and implement a rigorous inspection.

  • Holiday test and coating thickness test on every plate to ensure outstanding factory quality.


YHR PRODUCTION PROCESS WORKFLOW

Raw Material Preparation
Laser Cutting
Shot Basting
Bending
Glass Coating
Firing
Inspection
